E-ABI reptile UVB meter showing UVI UVA and UVB
Product image unavailable.
PURPOSE-BUILT FOR REPTILE UVB LAMP CHECKS

See UVI , UVA & UVB.
Know What Your Lamp Delivers.

E-ABI helps reptile keepers check UVB lamp output at the actual basking zone — not by guessing from brightness, but by measuring UVI plus separate UVA and UVB intensity.

  • ✓ UVI + separate UVA and UVB readings
  • ✓ Check UVB lamp output at different distances and positions
  • ✓ Record and review up to 33 measurement points
  • ✓ HOLD the current reading for easier notes or photos
View Purchase Options See How It Works
Designed for practical reptile UVB lamp checking and comparison.
UVI UV Index
UVA + UVB Separate intensity readings
33 Points Record & review
3 Units Switchable UV intensity units

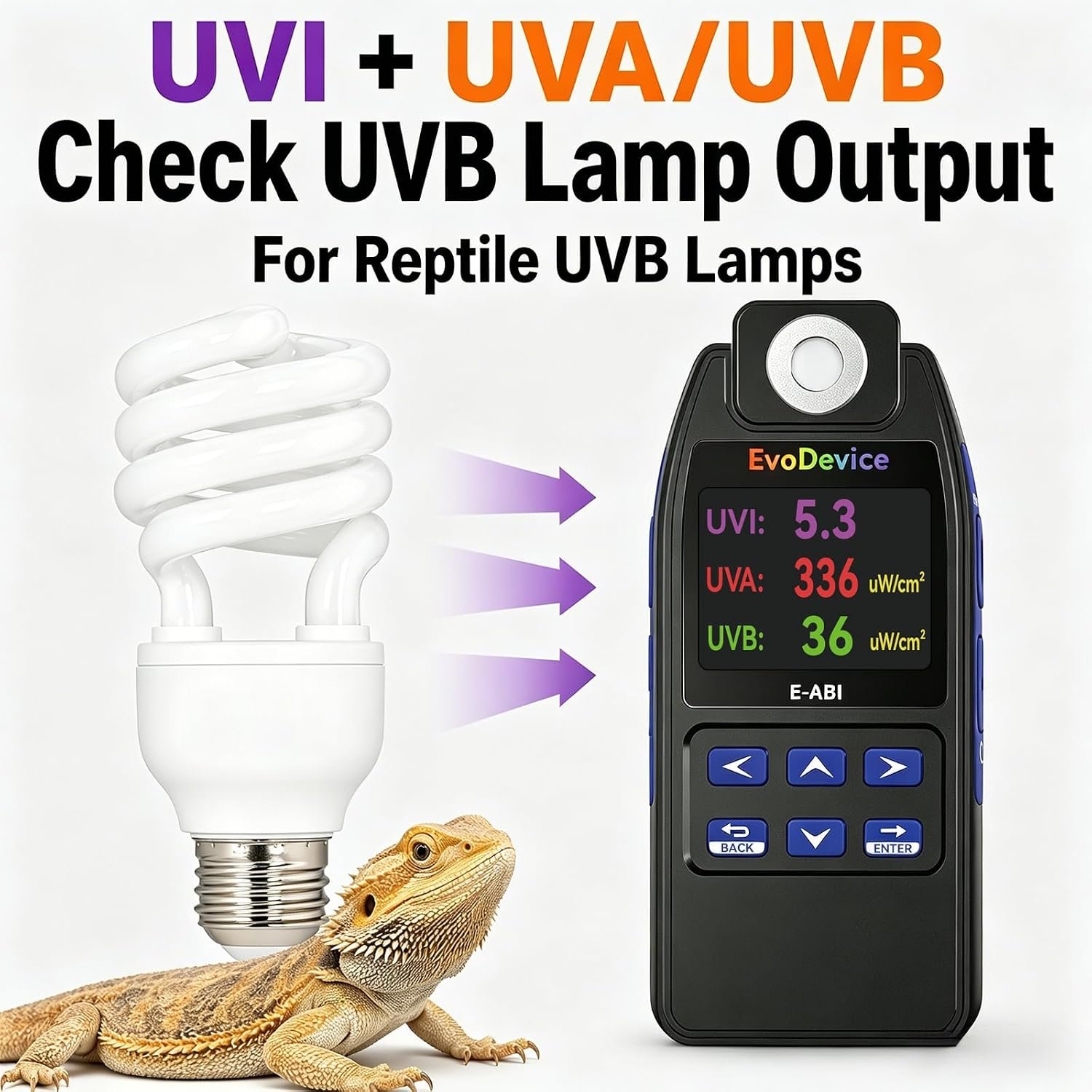

Checking a reptile UVB lamp with E-ABI
Image unavailable.
CHECK THE LIGHT WHERE YOUR REPTILE ACTUALLY SITS

Lamp output changes with distance and position.

A UVB lamp label tells you what the lamp is designed to produce. E-ABI helps you check what reaches the measurement point inside the actual setup.

Lamp → Distance → Position → Actual Reading

Measure at the basking area, compare another position, or repeat the same test later to monitor changes in lamp output.

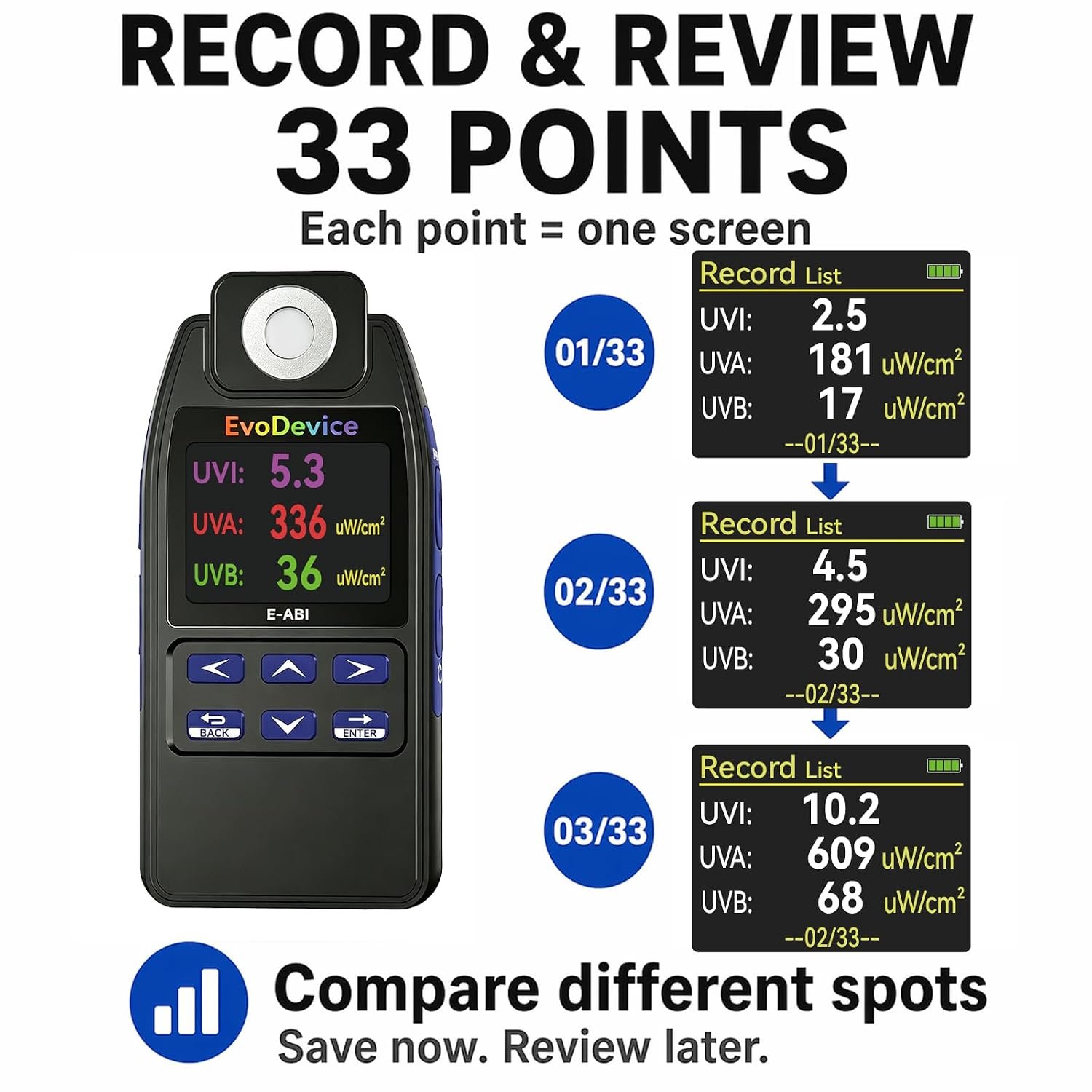

E-ABI 33 point record and review function
Image unavailable.
MAP MORE THAN ONE SPOT

Record & Review 33 Points

Each measurement point is stored as one screen. Measure another location, save it, and continue through your setup.

01/33 First measurement point
02/33 Second measurement point
03/33 Continue through the setup

Useful for comparing basking areas, lamp distances, different positions, or repeating the same measurement pattern later.

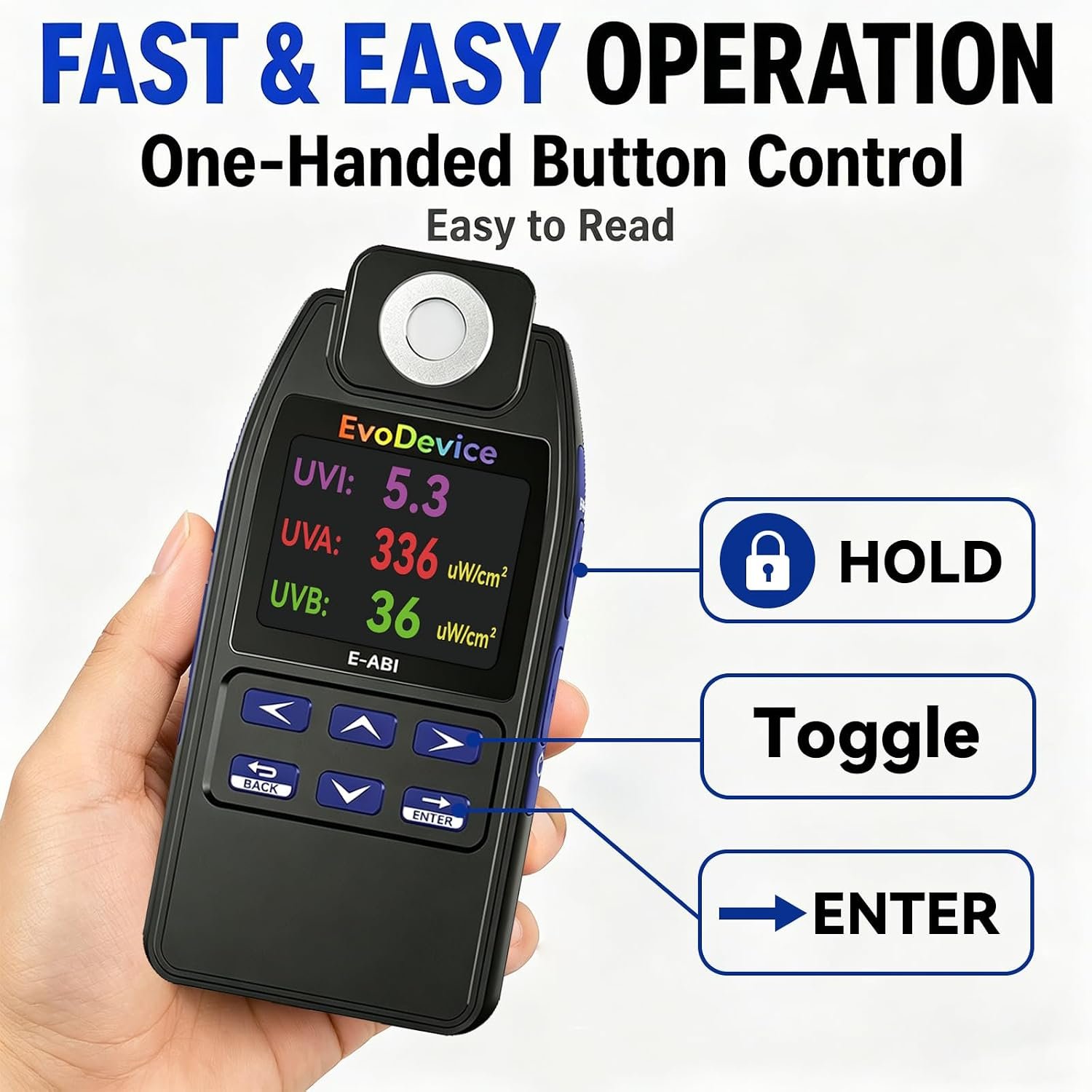

SIMPLE BUTTON CONTROL

Fast & Easy Operation

Dedicated physical controls make it easy to measure, switch functions, hold a reading and record a test point.

HOLD Freeze the current reading so you can write it down or take a photo.
SWITCH Move between available measurement and menu options.
ENTER Confirm a selection or save a measurement point.
E-ABI easy button controls and hold function
Image unavailable.

UVI, UVA & UVB

UVI is a weighted UV Index. UVA and UVB are radiation intensity measurements.

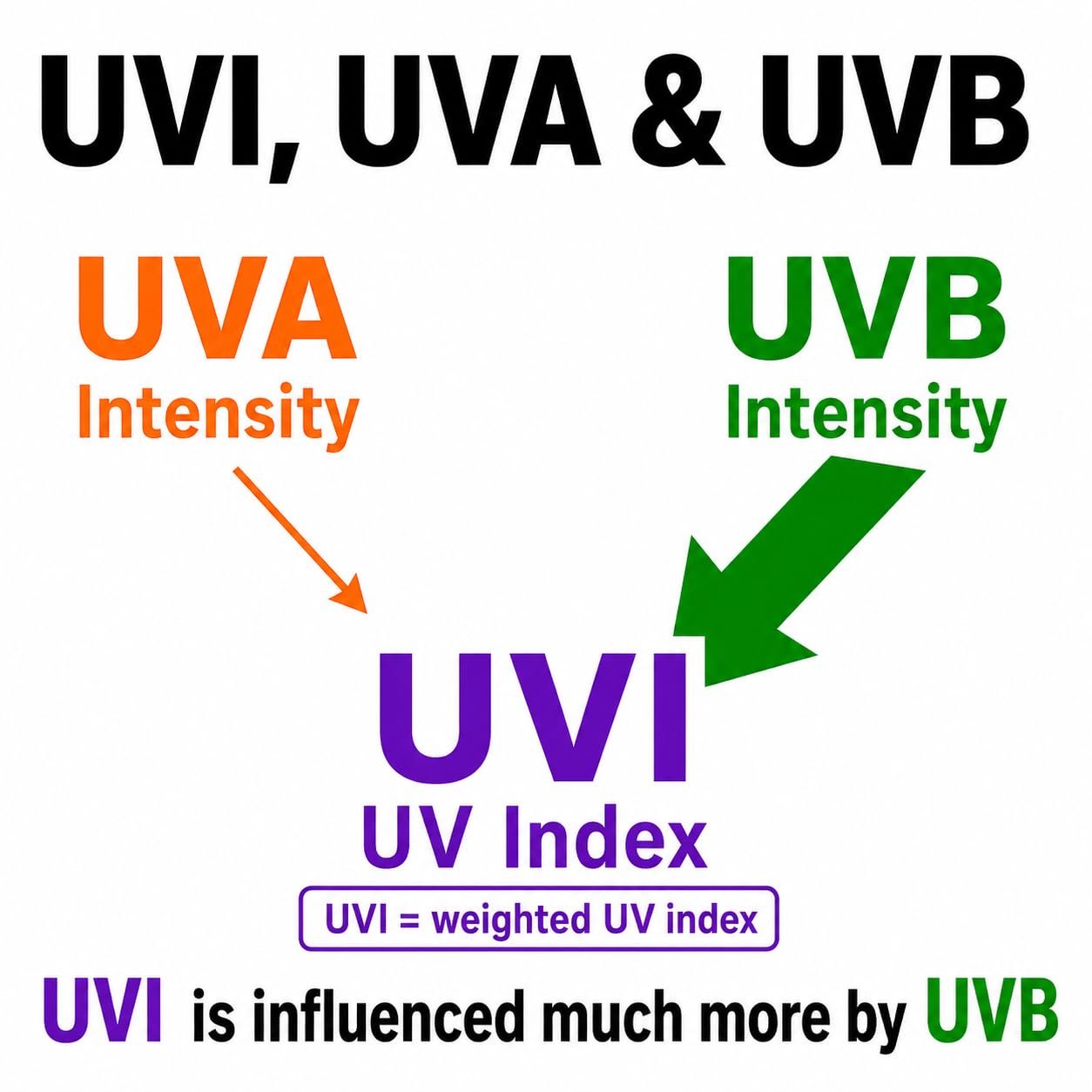

Relationship between UVI UVA and UVB
Image unavailable.

UVI is influenced much more by UVB

UVI is a weighted UV Index rather than a simple UVA + UVB total. UVB contributes much more strongly to the UVI value than UVA.

UVI Weighted UV Index
UVA UVA radiation intensity
UVB UVB radiation intensity
UVI does not simply equal UVA + UVB.

E-ABI provides both the easy-to-read UVI value and separate UVA / UVB intensity information from the same measurement position.

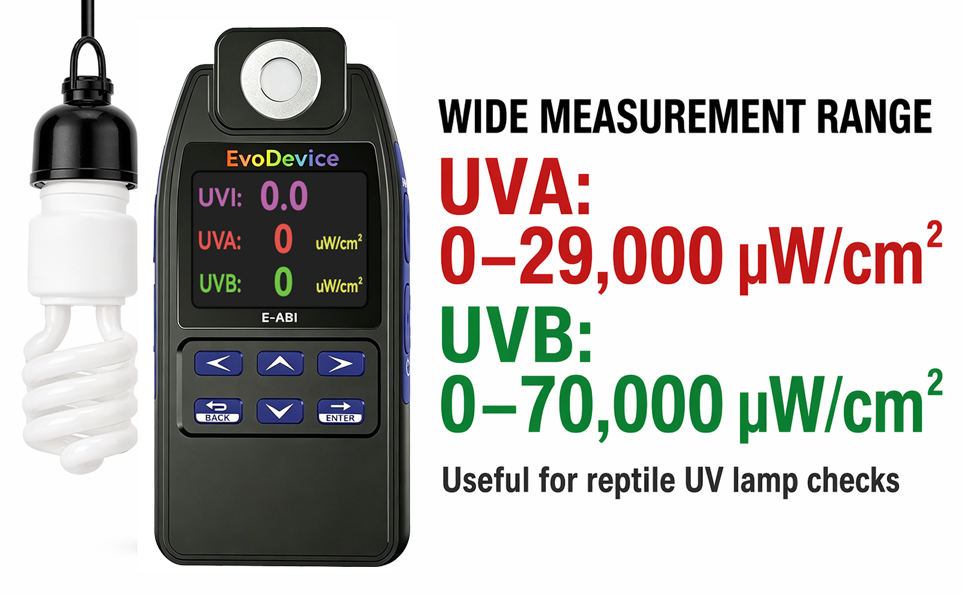

Wide Measurement Range

Built for practical UV lamp testing across a wide range of output levels.

UVA 0–29,000 μW/cm²
UVB 0–70,000 μW/cm²
E-ABI wide UVA and UVB measurement range
Image unavailable.

More Useful Measurement Details

Know what the UVA measurement is calibrated for and choose the UV intensity unit you prefer.

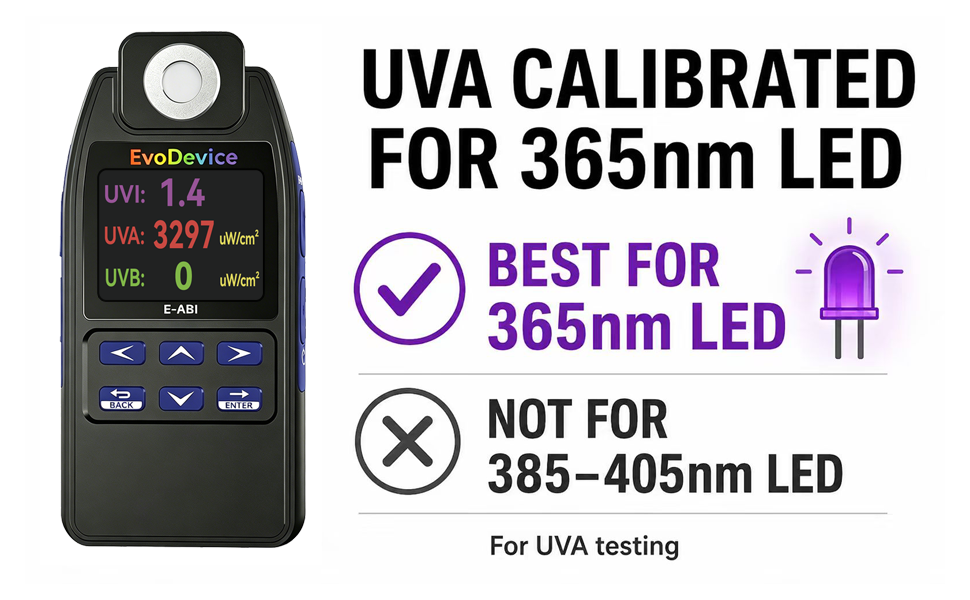

E-ABI UVA calibrated for 365nm LED
Image unavailable.

UVA Calibrated for 365nm LED

For best UVA measurement results, use the UVA function with 365nm LED sources. It is not recommended as a reference measurement for 385–405nm LEDs.

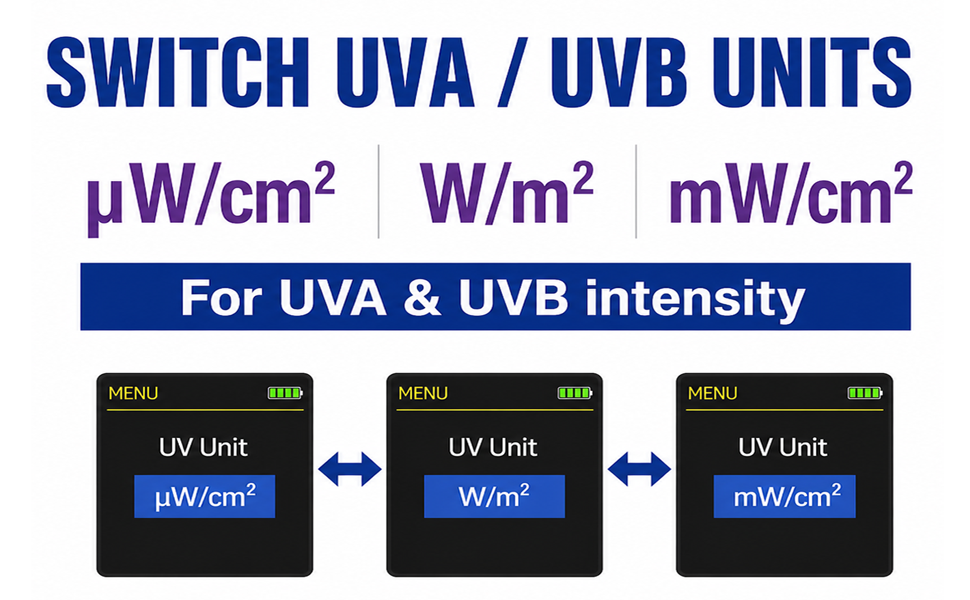

Switchable UVA and UVB radiation intensity units
Image unavailable.

Switch UVA / UVB Units

Display UVA and UVB radiation intensity in μW/cm², W/m² or mW/cm².

i

Important UVA Measurement Note

E-ABI's UVA function is calibrated using a 365nm LED source. For best results, use this function for measuring 365nm LED sources. Measurements of 385–405nm LEDs should not be treated as equivalent reference measurements.

Built Around Reptile UVB Lamp Checks

Choose the instrument based on the UV source and the measurement task.

E-ABI is a strong fit when you want to:

Check UVI and separate UVA / UVB intensity from reptile UVB lamps, compare basking positions, test different distances, record multiple measurement points and repeat the same checks later.

Need UVC Measurement?

E-ABI is designed around UVI, UVA and UVB measurement. It is not positioned as a UVC / 254nm measurement instrument.

Stop Guessing What Reaches the Basking Zone.

Measure UVI, UVA and UVB, compare different locations, and save up to 33 measurement points with E-ABI.
