EvoDevice ALSPD2CORE · Type 2 SPD

ALSPD2CORE Type 2
Whole House Surge Protector

A straightforward, non-smart SPD for U.S. 120/240V split-phase residential panels. ALSPD2CORE combines 36,000A surge-current capacity per phase, 4 thermally protected MOVs, dual green status indicators and a 15A breaker connection—without Wi-Fi or an app.

The purchase-options button opens an independent third-party retail website. Product price, stock, shipping, returns and checkout terms are controlled by that retailer.

Price: $49.80 U.S. reference price. Price and availability may vary.
Type 2Panel-mounted whole-house SPD
36,000 ASurge-current capacity per phase
4 TPMOVsThermally protected MOV design
15 ABreaker connection
EvoDevice ALSPD2CORE 36,000 amp whole house surge protector
Simple protection. Clear local status. No Wi-Fi · no app · dual green indicators
Installation at an electrical panel should be completed by a qualified electrician in accordance with the product instructions and applicable electrical codes.

What is the EvoDevice ALSPD2CORE?

EvoDevice ALSPD2CORE is a non-smart Type 2 whole-house surge protective device for 120/240V split-phase residential electrical panels. It provides up to 36,000 A of surge-current capacity per phase, uses four thermally protected MOVs, and provides local protection-status indication through two green front indicators.

ALSPD2CORE is designed for connection through a 15 A circuit breaker according to the product instructions and does not require Wi-Fi or a phone app. Choose the smart WFSPD2ULTRA model instead when remote monitoring, voltage display, surge-event tracking or phone notifications are required.

Simple Type 2 protection

A straightforward whole-house SPD without Wi-Fi or an app

ALSPD2CORE is built for homeowners who want conventional panel-level surge protection with simple local status indication. It is designed for 120/240V split-phase residential systems and keeps the product focused on the core protection function.

No Wi-Fi or app required

Protection status is checked directly on the unit, with no cloud account, phone pairing or connected monitoring required.

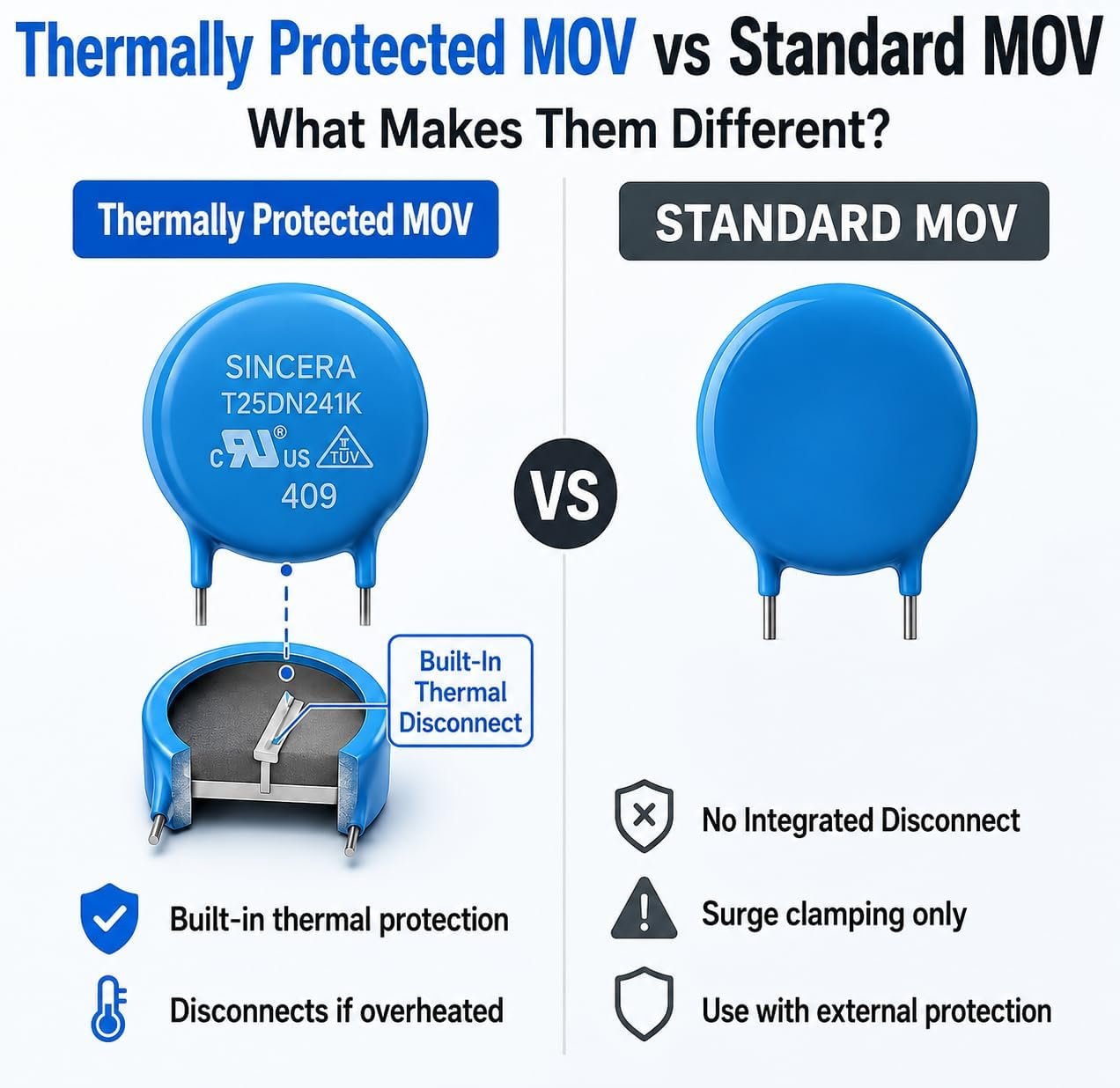

4 thermally protected MOVs

Four thermally protected metal oxide varistors form the core surge-suppression design.

Dual green status indicators

Two front green indicators give a quick local check of the product's protection status.

ALSPD2CORE whole house surge protector product view

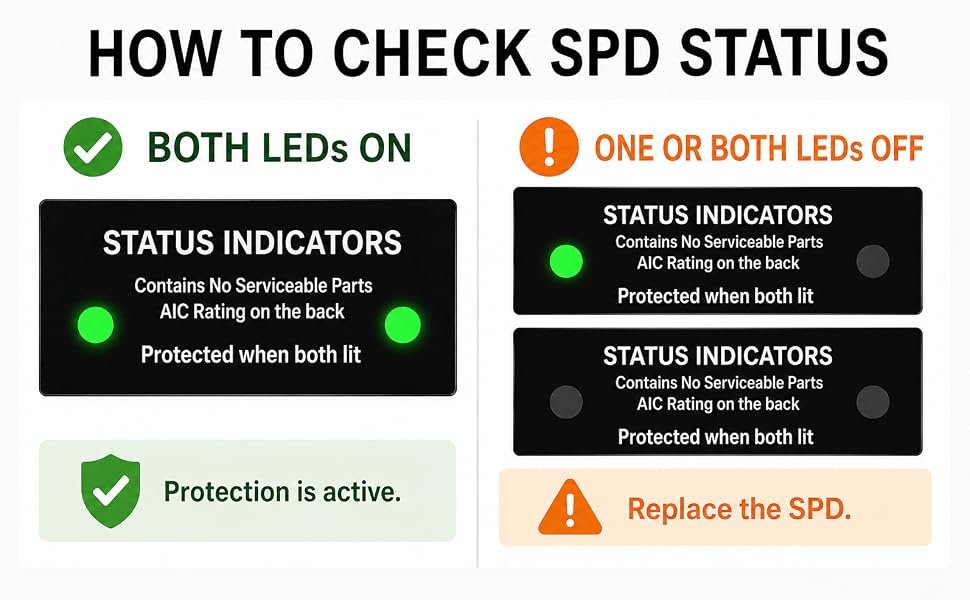

Local status indication

Two green indicators make protection status easy to check

When both front green indicators are illuminated, ALSPD2CORE indicates normal protected status. If either indicator is not illuminated as expected, follow the product instructions and have the installation inspected.

  • Easy-to-see front status indicators
  • Simple visual inspection during routine electrical checks
  • Clear front-panel status visibility
  • Compact design for clean panel-area installation

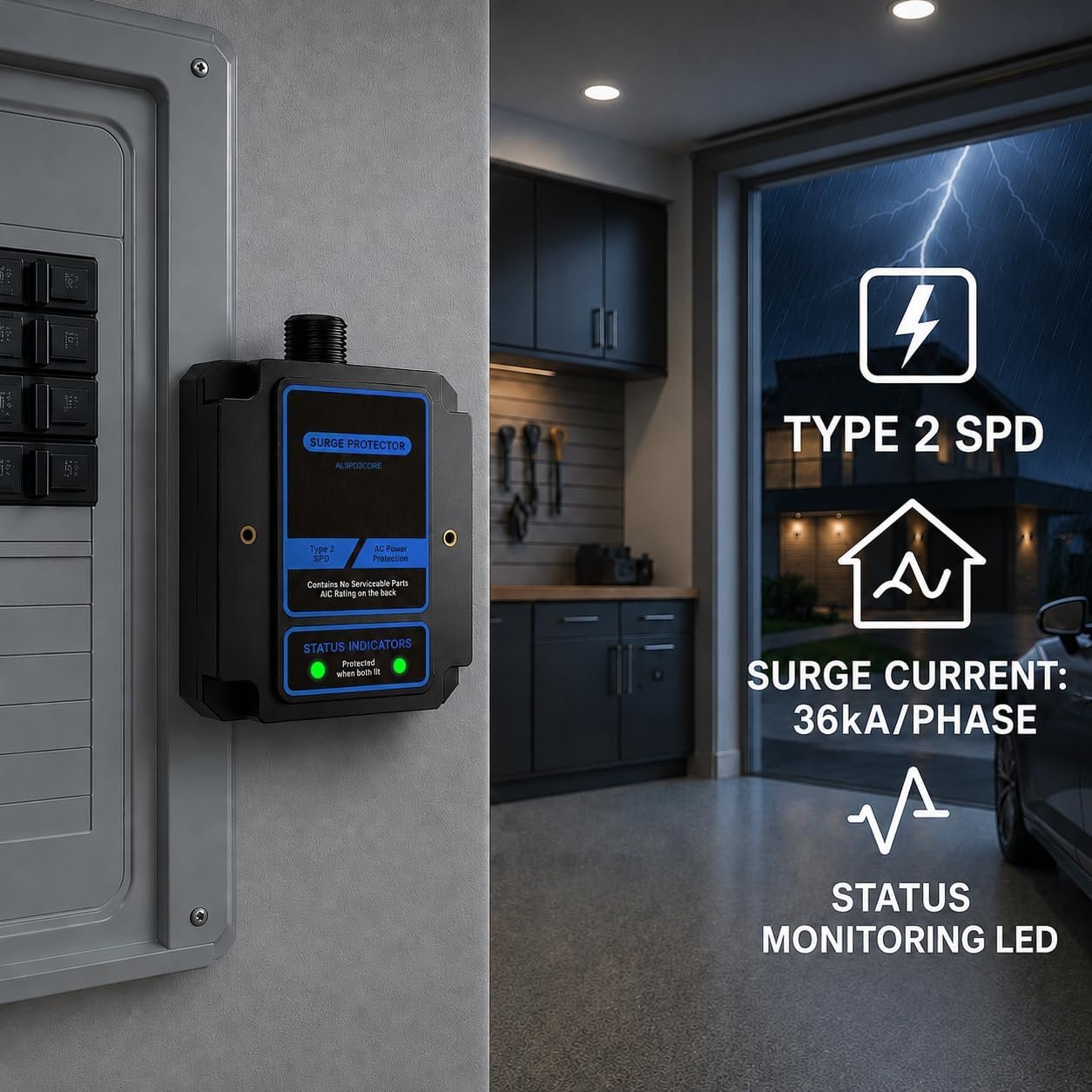

Whole house surge protection in a residential home environment

Protect what is connected

Modern homes have more electronics on every circuit

TVs, computers, kitchen appliances, HVAC controls, networking equipment and smart-home devices all depend on the same electrical system. Panel-level surge protection adds a first line of defense for everything downstream.

Living spacesTVs, computers, entertainment and networking equipment
Kitchen & utilityMajor appliances and electronic controls
Connected homeSecurity, automation and smart-home electronics

Whole-home defense

A compact SPD with a job bigger than its footprint

The device sits at the electrical distribution point, where one properly installed SPD can help protect circuits throughout the home.

Internal construction of ALSPD2CORE whole house surge protector

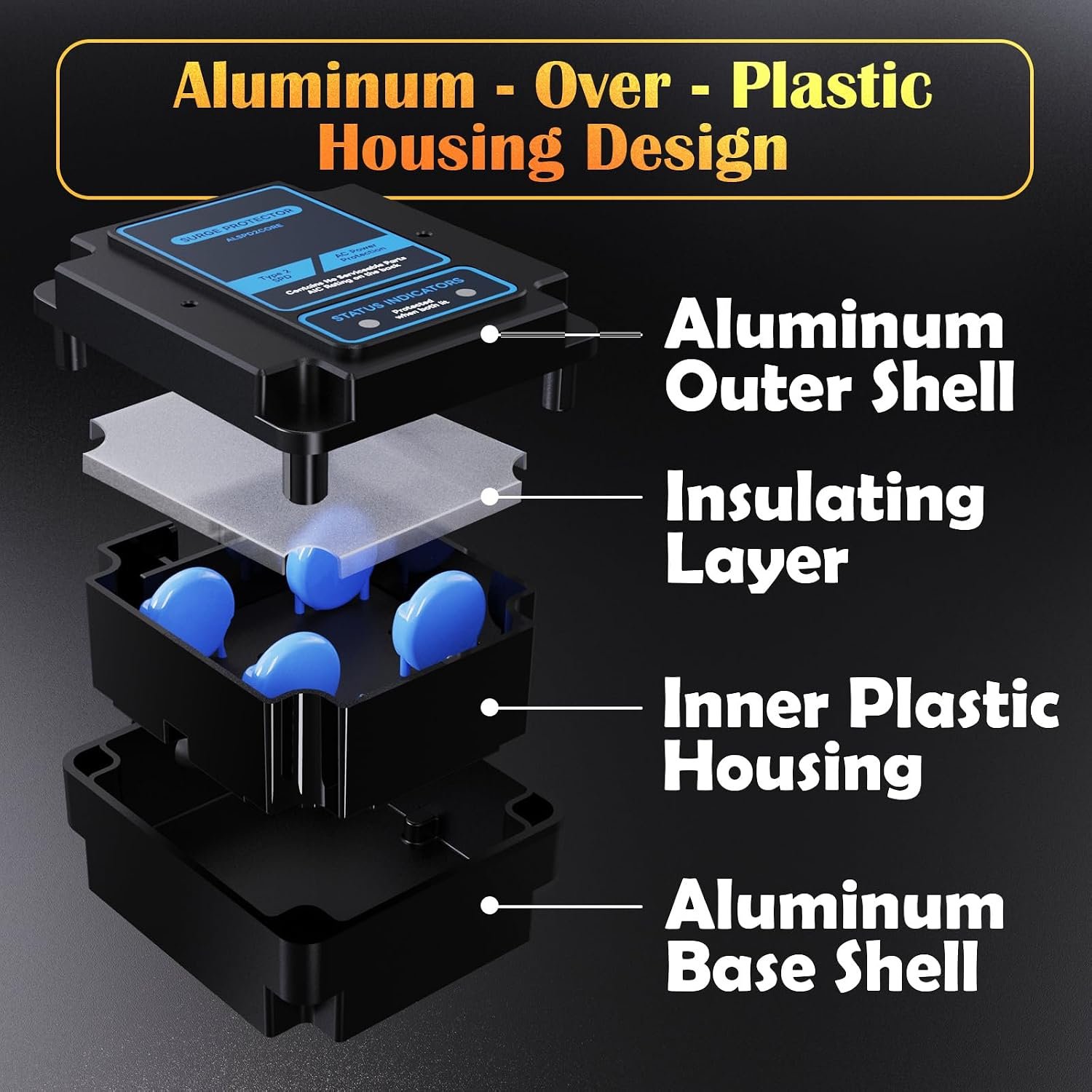

Inside the enclosure

Four thermally protected MOVs in a compact housing

ALSPD2CORE uses four thermally protected MOVs to help suppress transient voltage surges. The product combines that protection core with dual front status indicators and an aluminum outer shell over an internal plastic housing.

  • 4 thermally protected MOVs
  • Dual green protection-status indicators
  • Aluminum outer shell with internal plastic housing
  • Fixed panel-area installation with prewired leads

Product video

See the whole house surge protector in action

Watch the product overview for a closer look at the enclosure, internal protection design, status indicators and installation concept.

Installation planning

Compact enough to plan around a crowded panel

ALSPD2CORE is designed for connection through a 15A circuit breaker according to the installation instructions. Review the dimensional drawing and mounting details before installation. Final placement, breaker connection and grounding must follow the supplied product instructions and local electrical requirements.

Product views

See the protection system from every angle

Product, installation and construction views help you confirm fit and understand the role of the SPD before scheduling installation.

ALSPD2CORE whole house surge protector front product view
ALSPD2CORE product and protection status view
Whole house surge protector residential use scene
Whole house surge protector coverage illustration

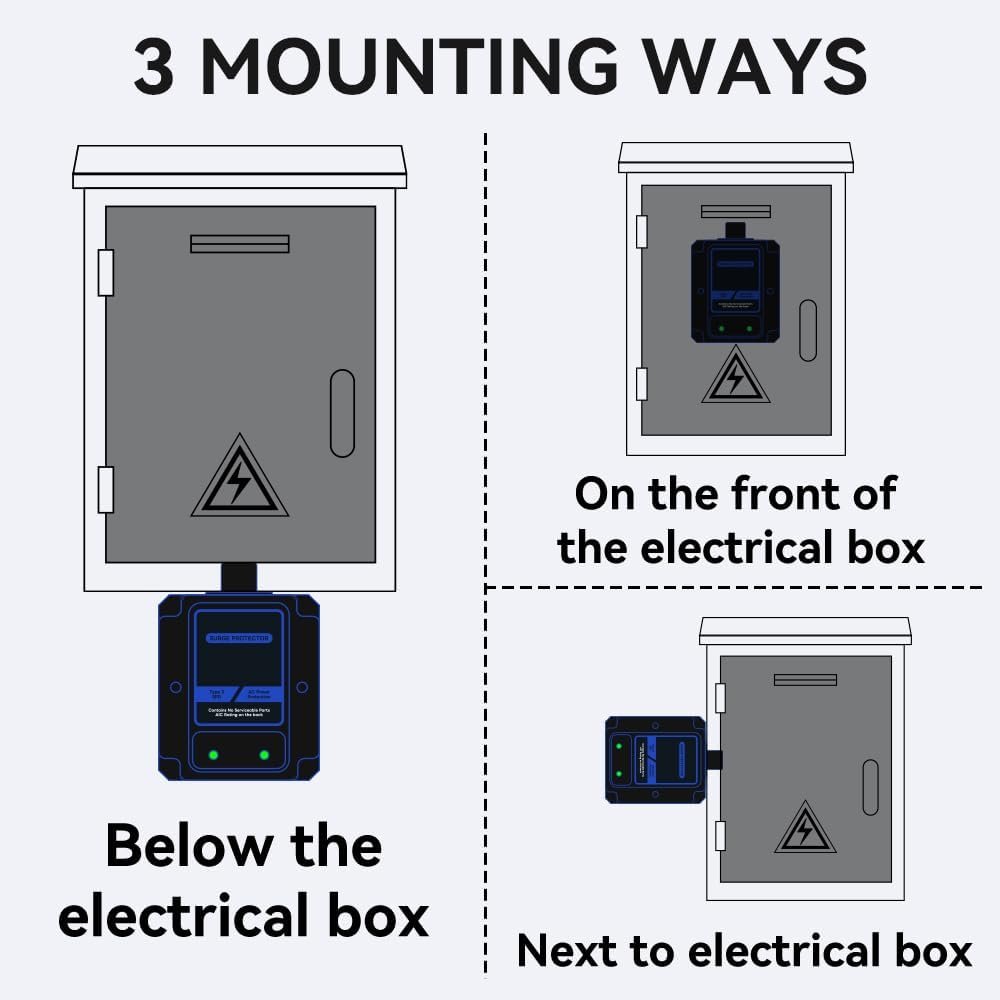

Whole house surge protector installation locations
Whole house surge protector internal construction view

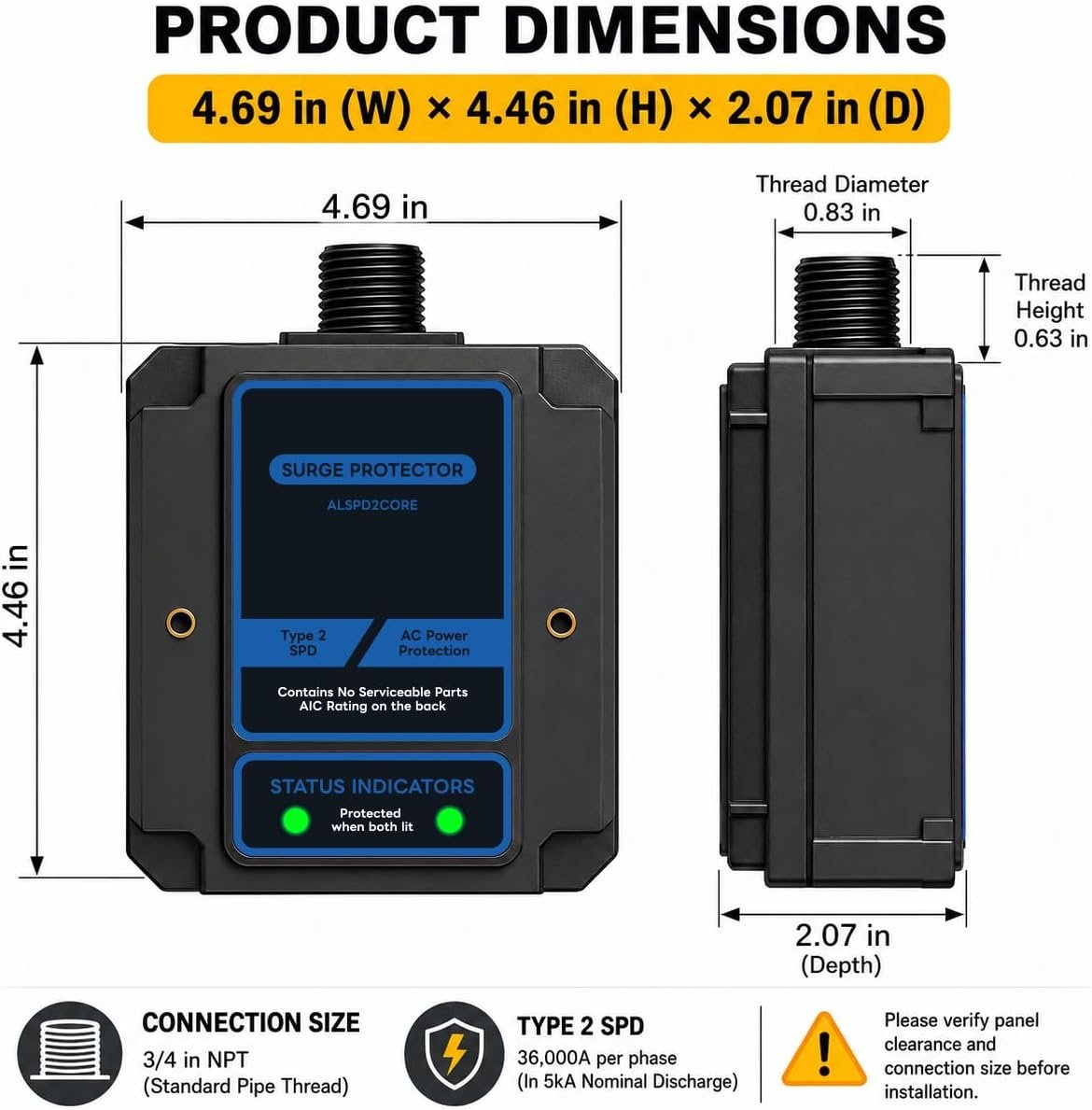

Whole house surge protector dimensional view
Whole house surge protector LED status explanation

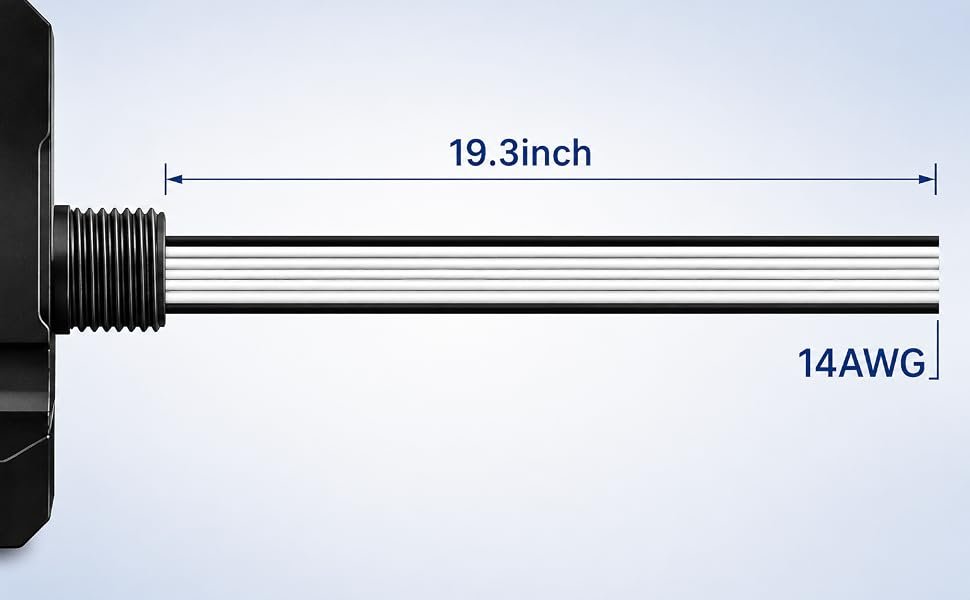

ALSPD2CORE whole house surge protector additional product detail

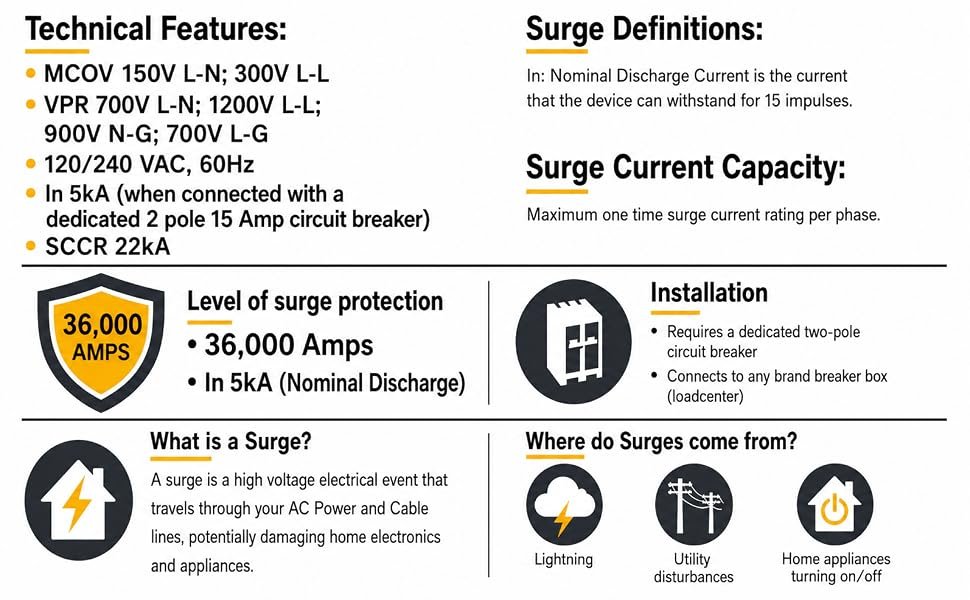

Key specifications

What matters before you buy

The 36,000A figure is a surge-current rating. It is not the home's service amperage and it is not a substitute for selecting the correct breaker or installation method.

ModelALSPD2CORE
Product typeType 2 whole house surge protective device (SPD)
Electrical system120/240V split-phase residential systems, 60Hz
Surge-current capacityUp to 36,000 A per phase
MOV design4 thermally protected MOVs
Status indicationDual green front protection-status indicators
Breaker connectionDesigned for connection through a 15A circuit breaker according to the installation instructions
ConnectivityNo Wi-Fi or app required
HousingAluminum outer shell with internal plastic housing
Installation locationAt or near a compatible residential load center / breaker panel
InstallationFixed electrical installation; qualified electrician recommended

Frequently asked questions

What homeowners usually want to know

Is ALSPD2CORE a Type 2 whole-house surge protector?

Yes. ALSPD2CORE is a Type 2 whole-house surge protective device intended for fixed installation at a compatible residential breaker panel.

What electrical system is ALSPD2CORE designed for?

It is designed for 120/240V split-phase residential electrical systems operating at 60Hz.

What does “36,000 A” mean?

It is the product's maximum surge-current capacity per phase. It does not mean the unit continuously draws 36,000 amps, and it is not the same as the home's electrical-service rating.

How is ALSPD2CORE protected internally?

The product uses four thermally protected MOVs as its surge-protection core.

What do the two green indicators mean?

The two front green indicators provide a local protection-status check. When both are illuminated, the product indicates normal protected status. Follow the product instructions if either indicator is not illuminated as expected.

Does ALSPD2CORE use Wi-Fi or a phone app?

No. ALSPD2CORE is the simpler non-smart EvoDevice whole-house SPD. Protection status is checked locally using the front indicators.

What breaker connection is ALSPD2CORE designed for?

The product is designed for connection through a 15A circuit breaker according to the installation instructions. Installation should be completed by a qualified electrician in accordance with applicable electrical codes and panel requirements.

Related Surge Protection Guide

Whole-House Surge Protection Guide

EvoDevice ALSPD2CORE is the simpler non-smart Type 2 whole-house SPD for 120/240V residential panels, with 36,000 A per phase, 4 thermally protected MOVs and dual green local status indicators. Learn how whole-house surge protection works, what key ratings mean, and how ALSPD2CORE compares with the smart WFSPD2ULTRA model.

Read the Surge Protection Guide Open Knowledge Center

Simple Type 2 protection for a 120/240V residential panel.

EvoDevice ALSPD2CORE combines 36,000A surge-current capacity per phase, 4 thermally protected MOVs, dual green status indicators and a 15A breaker connection—without Wi-Fi or an app.

Price: $49.80 U.S. reference price. Price and availability may vary.
View Purchase Options

Purchases are completed on an independent third-party retail website. The reference price shown on this page may differ from the current retailer price, stock, shipping or return terms.

Surge Protection Definitions

Understand whole-house surge protection terminology

Review the meaning of SPD, transient overvoltage and panel-mounted whole-house surge protection when evaluating ALSPD2CORE.

SPD · Transient Overvoltage · Whole-House Protection
Open Measurement Glossary →
Whole-House Surge Protection Selection

ALSPD2CORE or WFSPD2ULTRA?

Both are panel-mounted whole-house surge protective devices. ALSPD2CORE keeps the workflow simple with local dual-green status indication and no Wi-Fi or app, while WFSPD2ULTRA adds Wi-Fi monitoring, voltage display, surge-event count and connected notifications.

Compare: ALSPD2CORE · WFSPD2ULTRA
Compare EvoDevice Products →
ALSPD2CORE · Type 2 · 36,000A/Phase View Options
