EvoDevice WFSPD2ULTRA · WiFi Smart Type 2 SPD

WFSPD2ULTRA WiFi Whole House Surge Protector

Know when a qualifying surge event is recorded—even when you are away. WFSPD2ULTRA combines Type 2 protection for 120/240 VAC residential breaker panels with app notifications, local voltage display and recorded surge count in one panel-mounted product.

Price: $78.80U.S. reference price. Price and availability may vary.

The availability button opens an independent third-party retail website. Product price, stock, shipping, returns and checkout terms are controlled by that retailer.

108,000 ASurge current capacity
2,820 JTotal energy rating
120/240 VACResidential systems
2.4 GHz Wi-FiApp-connected viewing
EvoDevice smart whole house surge protector beside a phone showing voltage and surge count
Panel-level protection with smarter awareness. Local display + phone notifications + recorded surge count.
Installation must be completed by a qualified electrician in accordance with applicable electrical codes and the product instructions.

What is the EvoDevice WFSPD2ULTRA?

EvoDevice WFSPD2ULTRA is a WiFi smart Type 2 whole-house surge protective device for 120/240 VAC residential breaker panels. It combines panel-level surge protection with a local voltage display, recorded surge count and 2.4 GHz Wi-Fi app monitoring, including notifications when the device records a qualifying surge event.

Key ratings shown on this page include 108,000 A maximum surge current capacity, 20 kA nominal discharge current and 2,820 joules total energy rating. Installation should be completed by a qualified electrician according to the supplied instructions and applicable electrical codes.

Smart awareness

WFSPD2ULTRA gives you more than indicator lights alone

The front display and connected app make it easier to review voltage, surge count and device status without repeatedly opening the electrical panel.

App surge alerts

Receive a phone notification when the device detects a qualifying surge event, helping you connect electrical events with possible equipment issues.

Local voltage display

Check real-time AC voltage directly at the panel. Press the SET button to switch between voltage and surge-count display modes.

Remote event review

Connect through a compatible 2.4 GHz Wi-Fi app to review voltage, device information and recorded surge activity from your phone.

One integrated smart SPD

Protection + surge count + voltage + app monitoring in one product

Instead of building a separate monitoring stack around a conventional SPD, WFSPD2ULTRA integrates the monitoring functions most homeowners want to see directly into the device and its connected app.

No separate surge counter

The front display can show recorded surge count, with up to 999 qualifying events stored for review.

No extra monitoring gateway

WFSPD2ULTRA connects through a compatible 2.4 GHz Wi-Fi network for app-based voltage and surge-event viewing.

One consistent product identity

EvoDevice WFSPD2ULTRA is the WiFi smart Type 2 whole-house SPD designed for 120/240 VAC residential breaker panels.

Important: Smart monitoring does not replace the surge-protection function itself. Installation and electrical protection requirements must still follow the supplied instructions, equipment labeling and applicable electrical codes.

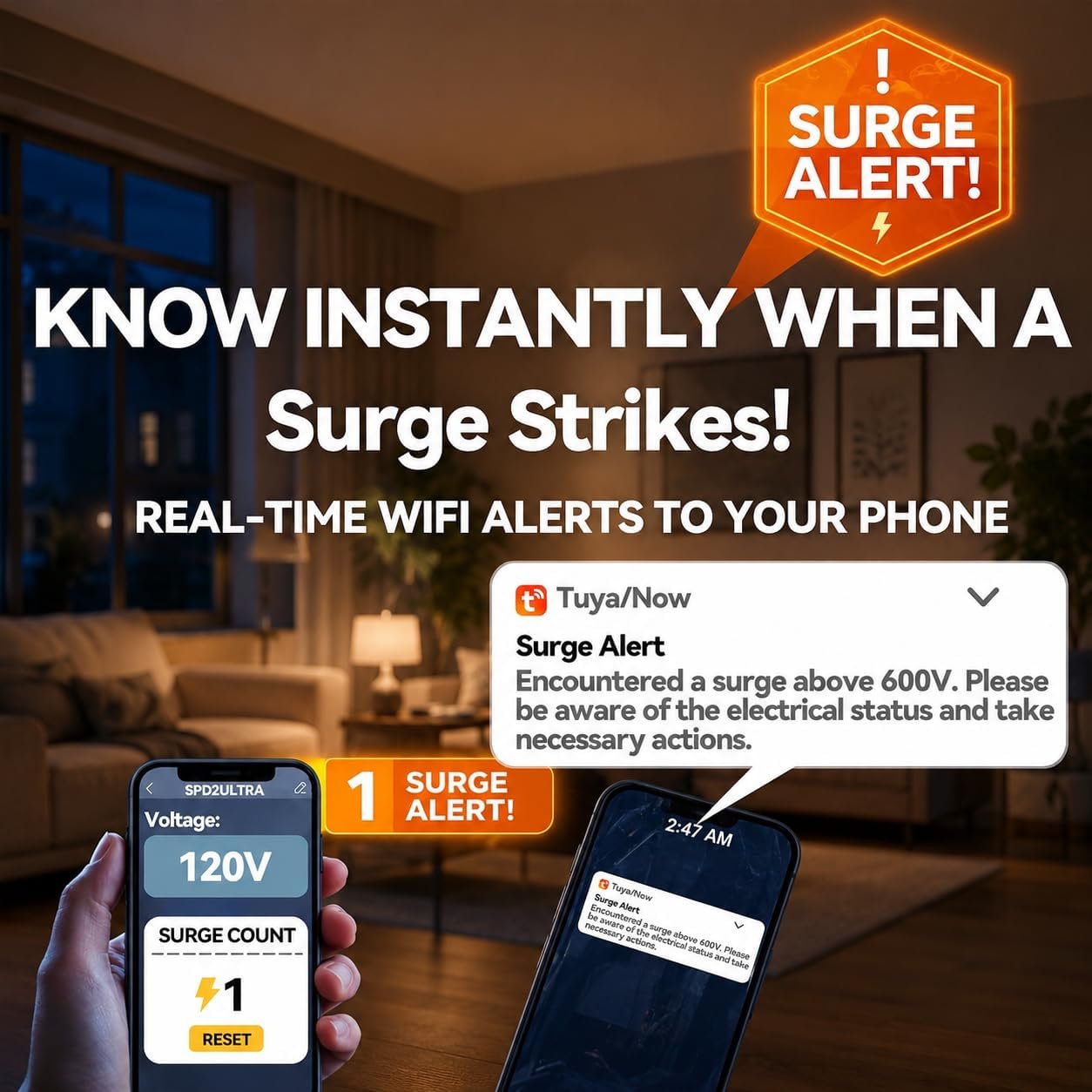

Phone notification showing a surge alert from the smart surge protective device

Early warning

A surge should not remain invisible

Traditional panel-mounted protectors may provide only local status lights. EvoDevice adds app-connected event awareness so you can review what happened even when you were not standing beside the panel.

  • Phone notification for qualifying surge events
  • Recorded surge count for quick historical review
  • Real-time voltage shown on the device and in the app
  • Clear front-panel status indicators

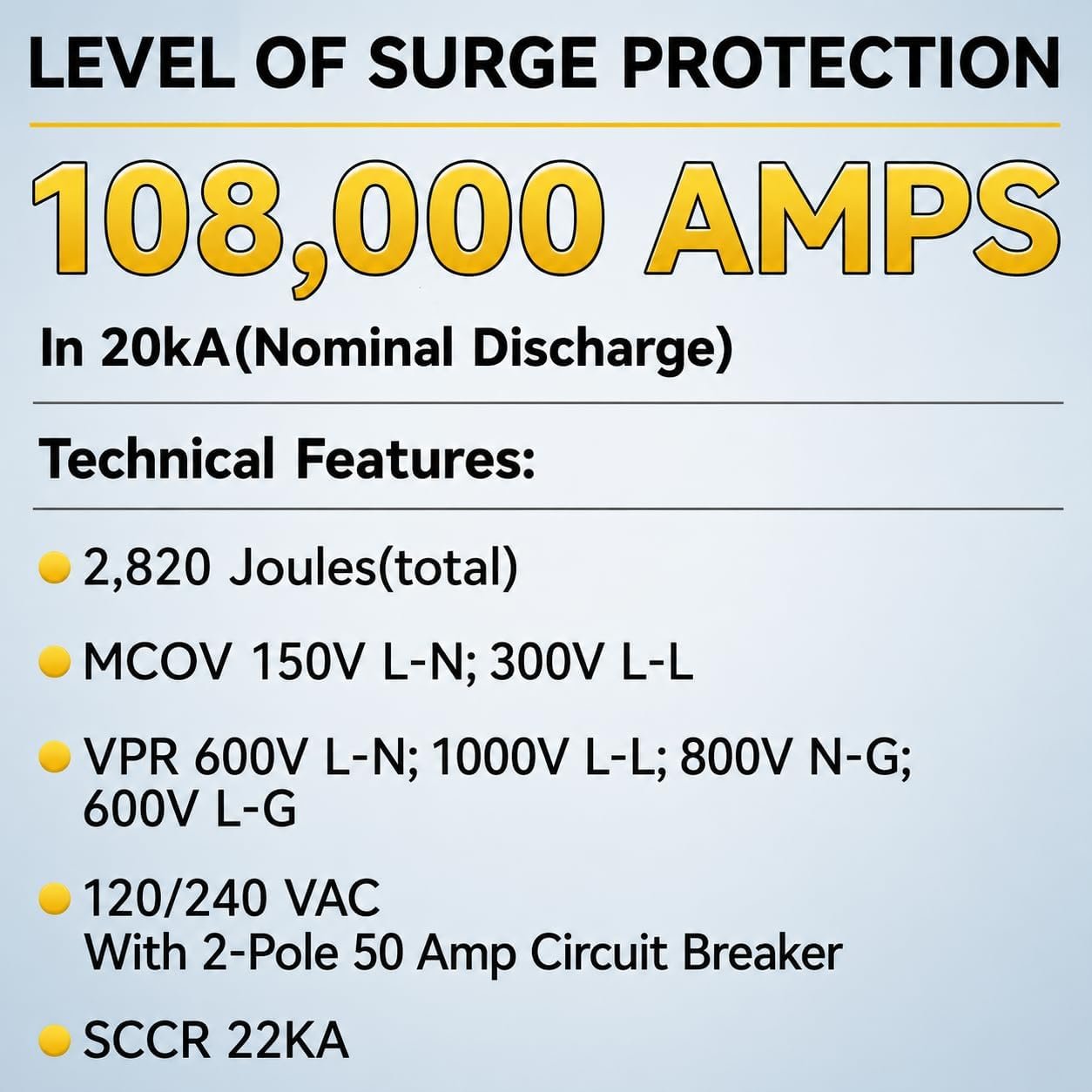

Surge protection specifications including 108000 amps and 2820 joules

Protection capacity

Built for residential 120/240 VAC breaker panels

The device is designed for a dedicated two-pole 50 A breaker connection and combines high surge-current capacity with panel-level monitoring.

  • 108,000 A maximum surge current capacity
  • 20 kA nominal discharge current
  • 2,820 joules total energy rating
  • MCOV: 150 V L-N and 300 V L-L
  • SCCR: 22 kA

Internal protection design

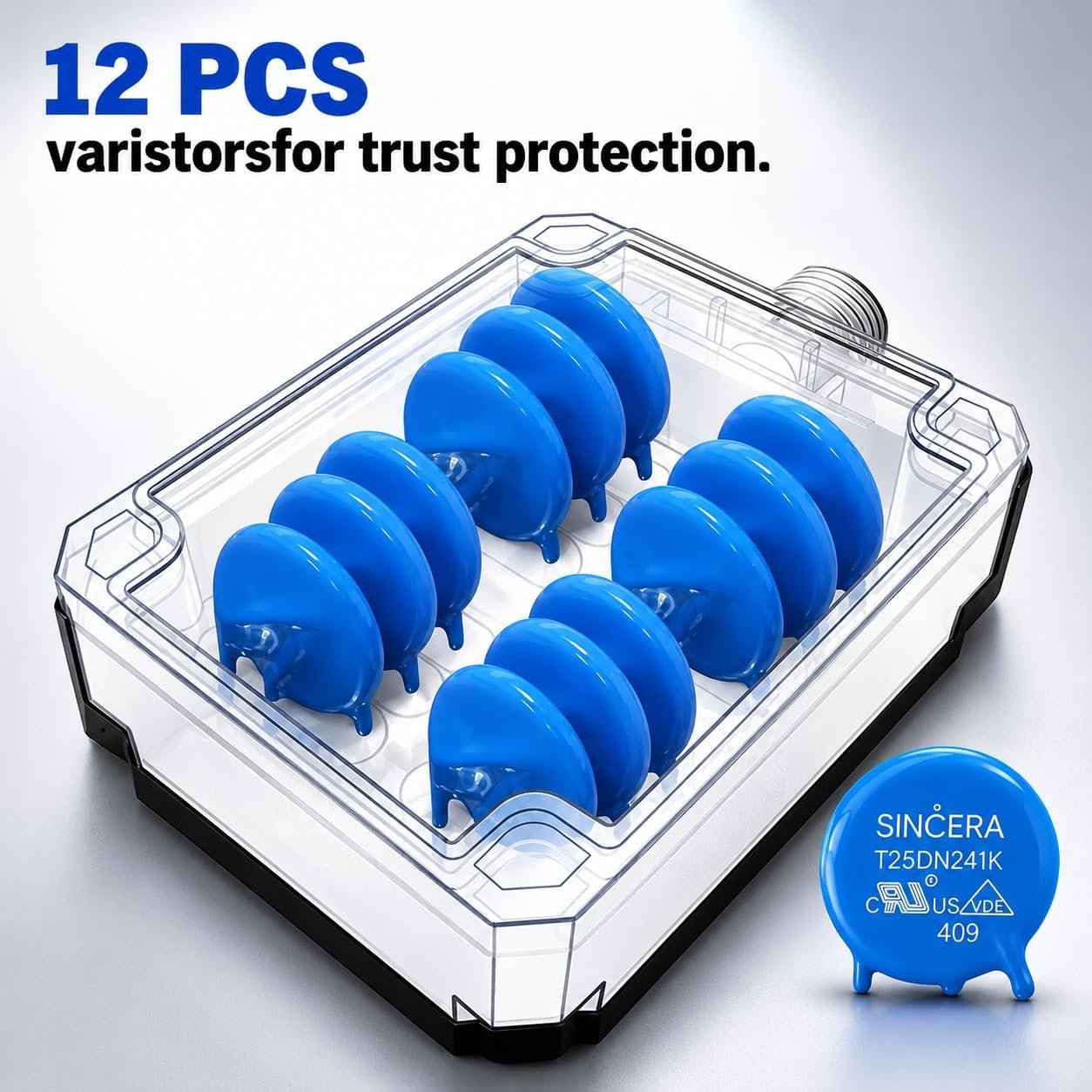

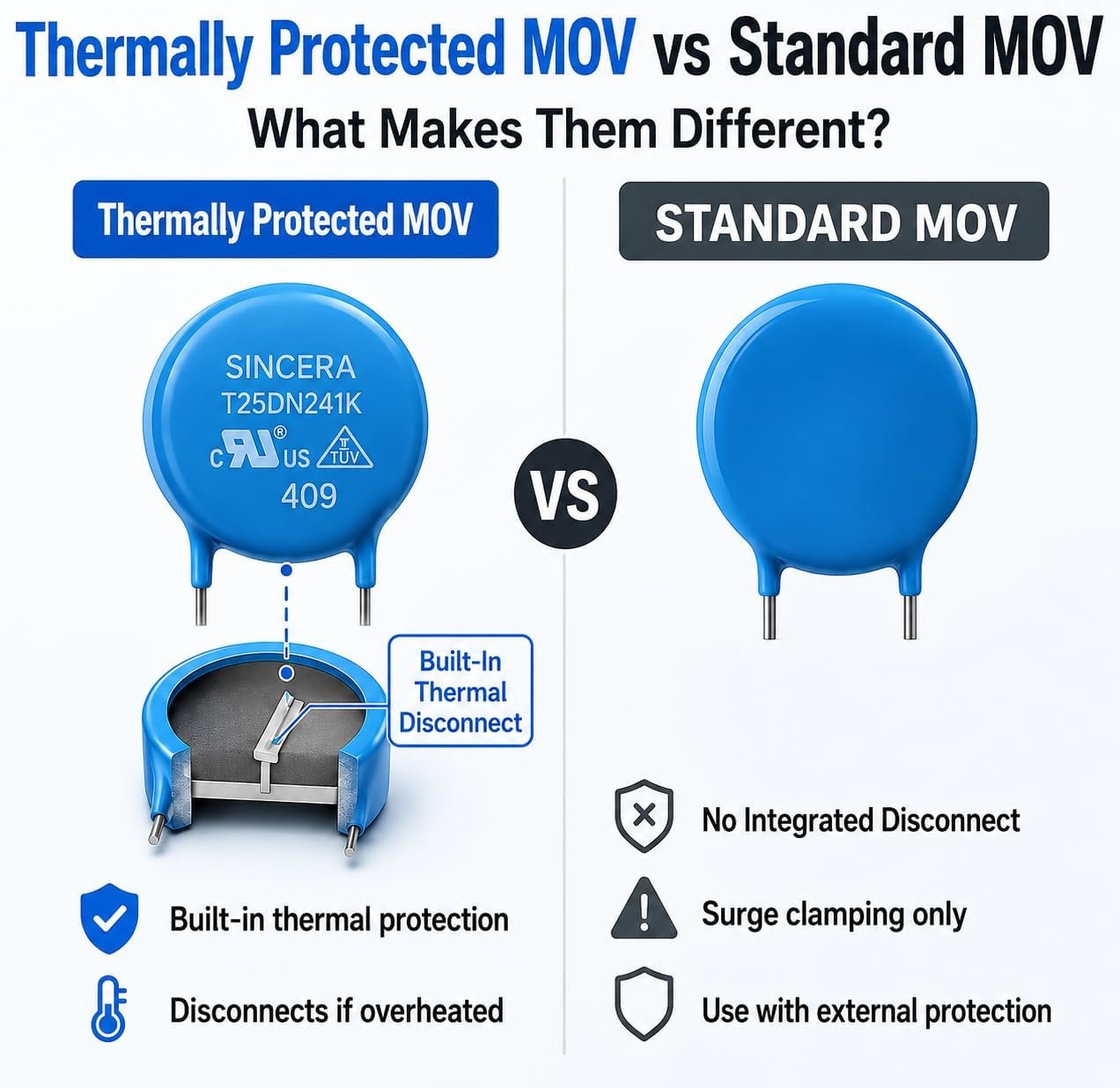

Thermally protected MOVs, not standard MOVs alone

The integrated thermal disconnect is designed to separate an overheated MOV from the circuit, adding a protection mechanism beyond surge clamping alone.

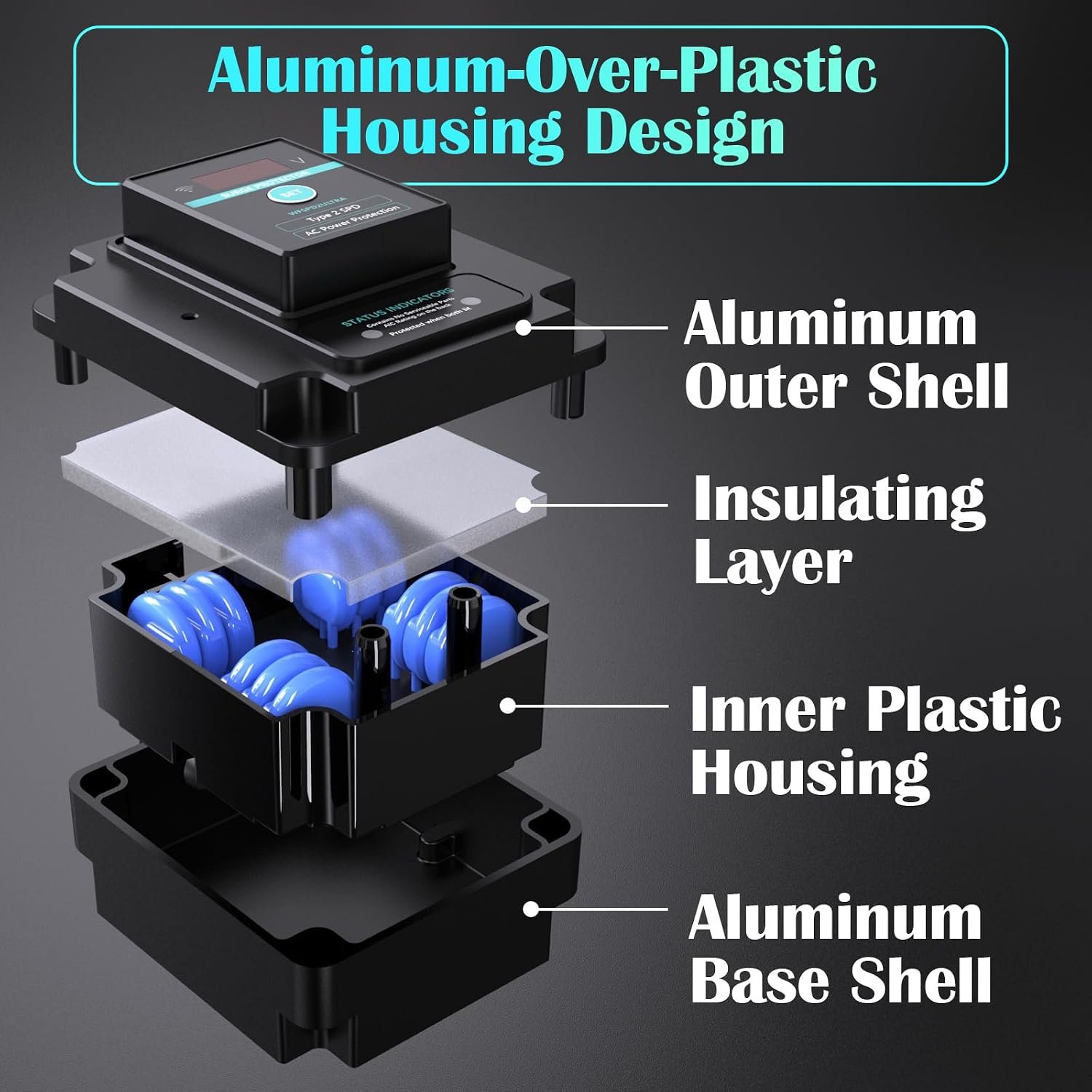

Exploded view of the aluminum outer shell, insulating layer, inner plastic housing and aluminum base shell

Layered enclosure

Aluminum-over-plastic housing design

An aluminum outer shell and base surround an insulated inner plastic housing. This layered structure provides a more solid exterior while retaining internal electrical insulation.

  • Aluminum outer shell
  • Insulating layer
  • Inner plastic housing
  • Aluminum base shell

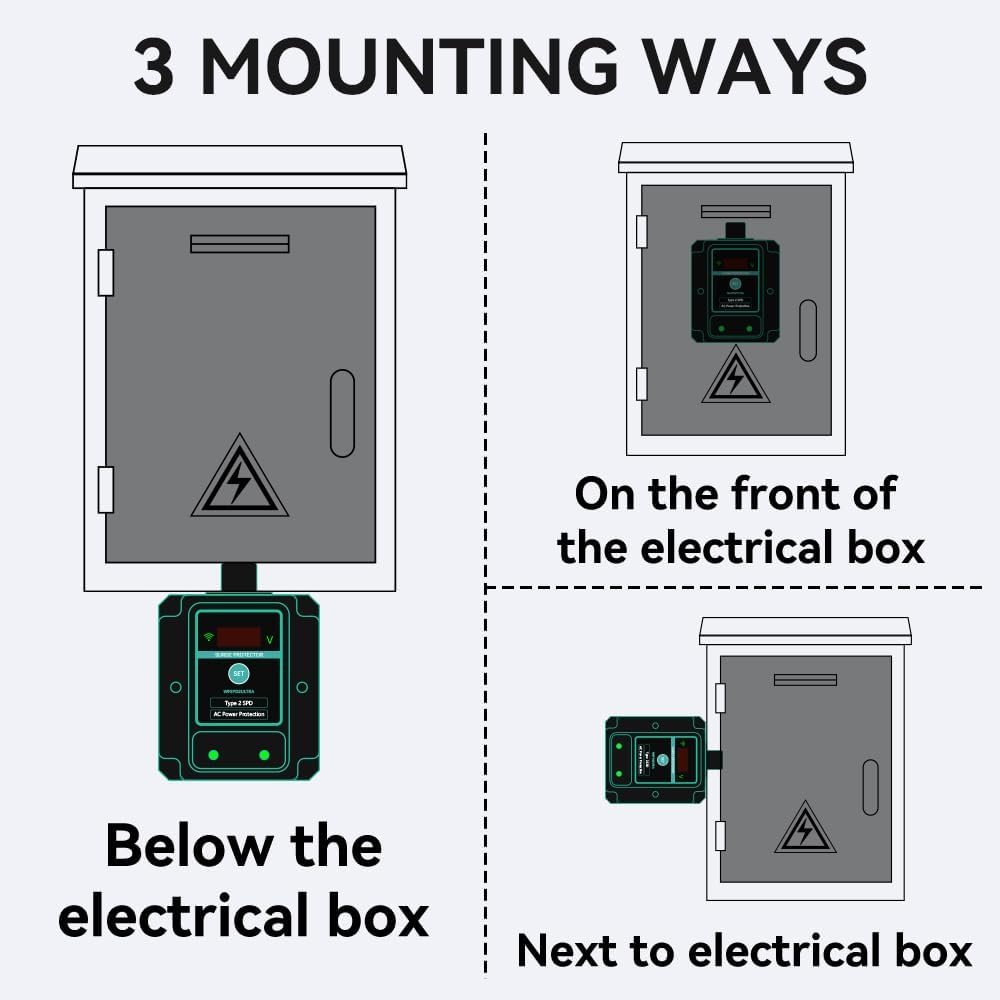

Installation planning

Flexible placement near the breaker panel

The enclosure can be positioned below, in front of or beside a compatible electrical box, depending on the installation layout and applicable code requirements.

Product video

See the smart SPD in action

Watch the product overview to see the front display, connected app and panel-level monitoring concept.

Product details

Protection, status visibility and installation details

Review protection details, status indicators, enclosure features, and installation information.

Key specifications

At a glance

Use this table as a quick reference. Final installation must follow the supplied manual, equipment labeling and local electrical requirements.

Product typeWiFi smart Type 2 surge protective device
System voltage120/240 VAC, 60 Hz
ConnectionDedicated two-pole 50 A circuit breaker
Surge capacity108,000 A maximum; 20 kA nominal discharge
Energy rating2,820 joules total
MCOV150 V L-N; 300 V L-L
VPR600 V L-N; 1,000 V L-L; 800 V N-G; 600 V L-G
SCCR22 kA
Connectivity2.4 GHz Wi-Fi app connection
Recorded surge eventsQualifying events above 600 V
Surge count capacityUp to 999 recorded events

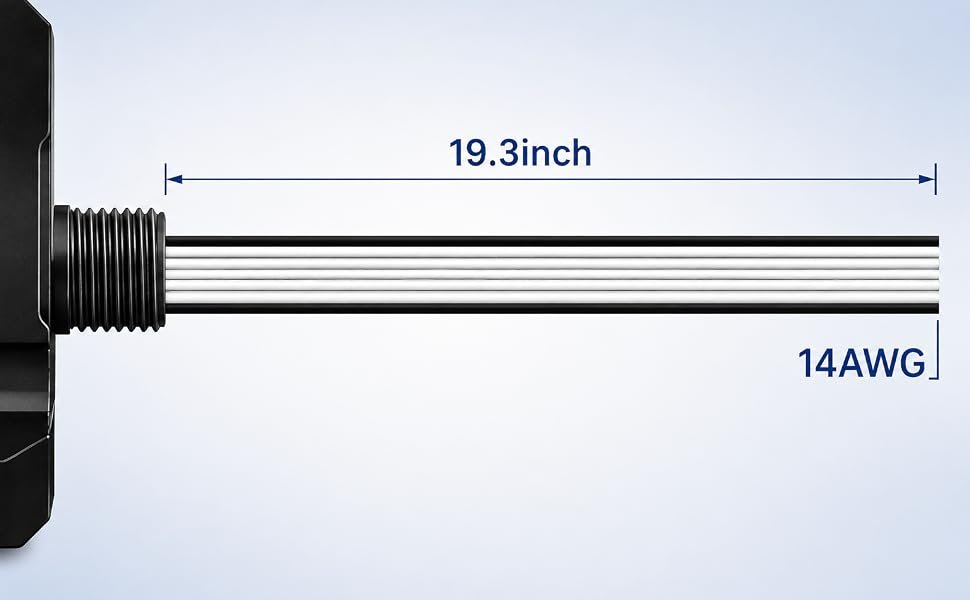

Lead wiresApproximately 19.3 in, 14 AWG

Frequently asked questions

Important things to know before installation

What is EvoDevice WFSPD2ULTRA?

WFSPD2ULTRA is a WiFi smart Type 2 whole-house surge protective device for 120/240 VAC residential breaker panels. It combines panel-level surge protection with local voltage display, recorded surge count and app-connected monitoring.

Do I need a separate surge counter, remote-signal module or Home Assistant setup?

No for the monitoring functions built into WFSPD2ULTRA. The unit already includes a local surge-count display and 2.4 GHz Wi-Fi app connectivity for viewing voltage and recorded surge activity. A compatible Wi-Fi network and app are still required for connected features.

What surge events can WFSPD2ULTRA record?

The product is designed to record qualifying surge events above 600 V and can store a surge count up to 999 for review on the device and through the connected app.

Does WFSPD2ULTRA replace plug-in surge strips?

No. A panel-mounted SPD and point-of-use surge protectors can serve different roles. A layered protection approach may still include appropriate plug-in protection for sensitive equipment.

Can I install WFSPD2ULTRA myself?

Installation involves work at a breaker panel and should be completed by a qualified electrician in accordance with the product instructions and applicable electrical codes.

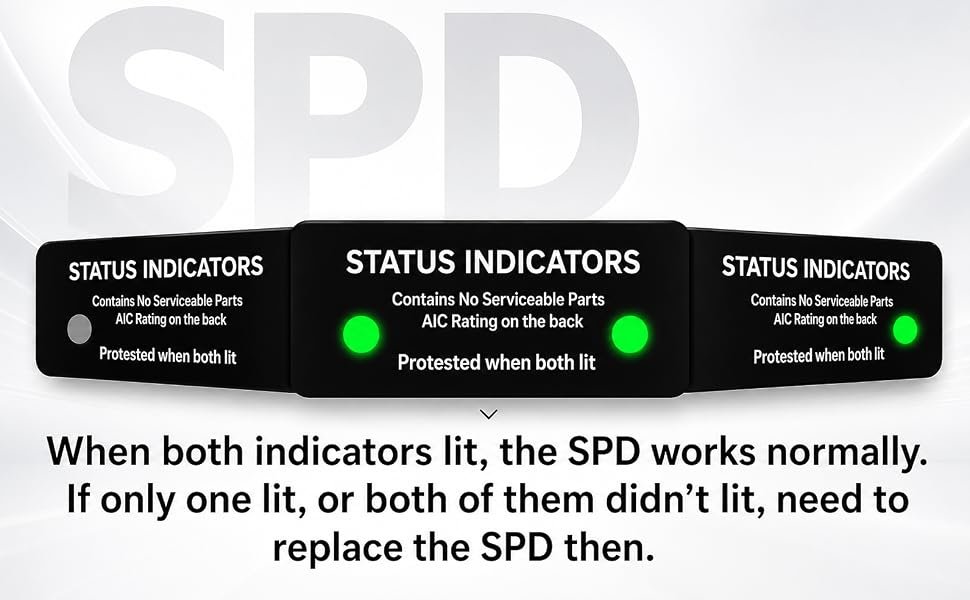

What do the two green indicators mean?

When both status indicators are illuminated, the protection status is normal. If only one is illuminated, or neither is illuminated, the unit should be inspected and replaced as directed by the product instructions.

Does the app require 2.4 GHz Wi-Fi?

Yes. WFSPD2ULTRA is designed to connect through a compatible 2.4 GHz Wi-Fi network for app-based viewing and notifications.

Related Surge Protection Guide

Whole-House Surge Protection Guide

WFSPD2ULTRA combines panel-mounted Type 2 surge protection with smart monitoring. For a broader comparison, learn how surge current, joule ratings, protection status and smart monitoring differ across whole-house SPD options.

Read the Surge Protection Guide Open Knowledge Center

WFSPD2ULTRA: protect the panel and make surge activity visible.

Upgrade from panel indicator lights alone to EvoDevice WFSPD2ULTRA, with local voltage display, recorded surge count and connected notifications. U.S. reference price: $78.80; price and availability may vary.

View Purchase Options

Purchases are completed on an independent third-party retail website. This page does not display or control retailer pricing, inventory, shipping or return terms.

Surge Protection Definitions

Understand whole-house surge protection terminology

Review the meaning of SPD, transient overvoltage and panel-mounted whole-house surge protection when evaluating WFSPD2ULTRA.

SPD · Transient Overvoltage · Whole-House Protection
Open Measurement Glossary →
Whole-House Surge Protection Selection

WFSPD2ULTRA or ALSPD2CORE?

Both are panel-mounted whole-house surge protective devices. WFSPD2ULTRA adds Wi-Fi monitoring, voltage display, surge-event count and connected alerts; ALSPD2CORE is the simpler non-Wi-Fi option. Use the Product Selection Guide to compare their monitoring approach and choose the EvoDevice SPD that better matches your installation and monitoring needs.
